一、说明

1、材料：辐射交联改性氖聚合输

2、收缩倍率： 2:1

3、特点：耐高温， 透明， 阻燃， 珊壁， 柔软(150°C) /半硬质(175°C)

4、收缩温度： 150°C/175°C 通过150°C &DOV VW-1等级UL认证

5、标准颜色：透明

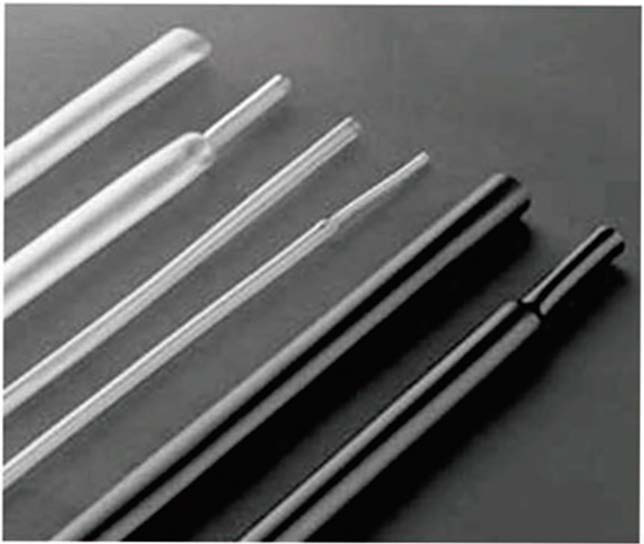

一、PRODUCT DESCRIPTION

1、Material: radiation cross-linked modified fluoropolymer

2、Shrink ratio: 2:1

3、Features:Temperature. transparent, flame retardant, thin-walled Soft (150 ℃) / semi-rigid (175 ℃)

4、Shrinkage temperature, 150°C/175°C By 150℃600VVW-1 rating UL certification

5、Standard Color: Transparent

二、应用范围

该产品具有良好的耐热，耐磨损，抗机械损伤和耐化学介厦腐蚀性能 ，能透用于那些可能存在腐蚀性空气，熟循环或机械应力作用的不利环境，良好的阻燃性麓，还被应用于汽车。航空，船舶，电子设备等仪器配线的场合；另外，良好的透明性还适合于电子元件的包封元件的区分别

二、APPLICATION

The product has good heat resistance, wear resistance, resistance to mechanical damage and chemical resistance to corrosion, can be applied to those who may be the presence of corrosive air, thermal cycling or mechanical stress adverse environmental effects; good flame retardant properties. was also used in automobiles. Aviation, marine. electronic equipment and other equipment where wiring; addition, good transparency and is also suitable for encapsulating electronic components separately element area

三、技术指标

项目Project	测试方法 Testing method	柔软(150℃)特性 Soft (150℃) Features	半硬质 (175℃)特性 Semi-rigid (175℃) Features
比重 Proportion	ASTM D792	≤1.8g/cm3	≤1.8g/cm3
拉伸强度Tensile strength	ASTM D2671	≥24.5MPa	≥34.5MPa
断裂伸长率 Elongation at break	ASTM D2671	≥150%	≥150%
老化后断裂伸长率 Elongation at break after aging	225℃/168h	≥100%	≥50%
热冲击 Thermal Shock	275℃/4h	不滴落，不开封No dripping, no cracking	不滴落，不开封No dripping, no cracking
低温冲击 Low-temperature impact	-55℃/4h	不开裂 no cracking	不开裂 no cracking
介电强度 Dielectric strength	ASTM D2671	≥15.7KV/mm	≥31.5KV/mm
体积电阻率 Volume resistivity	ASTM D257	≥1013Ω.cm	≥1013Ω.cm
燃烧性能 Combustion performance	Ul224	By VW-1	By VW-1

规格SPC	收缩前最小内径 Minimum diameter before shrinking		收缩前最大内径 Maximum diameter before shrinking		完全收缩后壁厚 After the wall is fully retracted
	mm	Inch	mm	Inch	mm	Inch
3/64	1.20	0.046	0.6	0.023	0 25 士0.05	0.01 土0.02
1/16	1.60	0.063	0.8	0.031	0 25 土 0.05	0.01 土0.02
3/32	2.40	0.093	1.2	0.046	0.25土0.05	0.01 土0.02
1/8	3.20	0.125	1.6	0.062	0.25 士0.05	0.01 土0.02
3/16	4.80	0.187	2.4	0.093	0.25 土0.05	0.01 土0.02
1/4	6.40	0.250	3.2	0.125	0.33 土0.05	0.013 0.02
3/8	9.50	0.375	4.8	0.187	0.33士0.05	0.013土0.02
1/2	12.7	0.500	6.4	0.250	0.33 土0.05	0.013士0.02
3/4	19.1	0.750	9.5	0.375	0.43 土0.08	0.017 土0.03
1	25.4	1.000	12.7	0.500	0.48 土0.08	0.019 士0.03
