一、说明

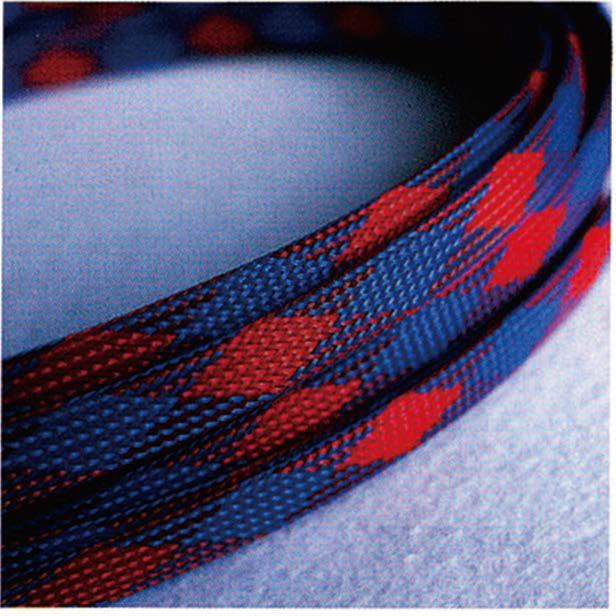

网状伸缩编织套管采用PET聚酯单丝，尼龙单组等具有坚固、耐磨，抗腐蚀的单丝编织而成，其具有良好的弯曲 性， 回弹性，耐磨性，仲缩性和透气性，可广泛使用于线材的护套及保护。 材质：尼龙、聚脂、PET

一、PRODUCT DESCRIPTION

TMesh stretch sleeving using PET polyester monofilament, nylon monofilament with a rugged, abrasion, corrosionresistant monofilament woven, it has good bending resistance, resilience, abrasion resistance, flexibility and breathablllty , can be widely used in wire and protective sheath. Materlal:Nyloon Ployestetr PET.

二、特点

1.耐磨性：可有效防止线材表面割伤损坏，有效保证产品适用的安全性

2.扩充性：可用于各种规则和不规则形状的线材。网管的OD可随线材的改变而改变

3.阻燃性：具有VW-1防火特性

二、Features

1.Wear resistance: can effectively prevent damage to the wire surface cuts, effectively ensuring the product is suitable for safety.

2.Extenslblllty: can be used for a variety of regular and irregular shape of the wire. Webmaster wire with an OD can be changed

3.Flammablllty: VW-1 with fire properties.

三、性能指标 (Performance)

型号 Model	自然状态下 Natural stateOD(mm)	适用最大适用 Applicable maximumOD(mm)	适用最大线材 Applicable maximum wireOD(mm)
163020	3.00	6.00	5.00
163025	4.00	8.00	5.00
243020	4.00	12.00	6.00
243025	6.00	13.00	7.00
322025	4.00	10.00	7.00
323020	6.00	14.00	7.50
323025	8.00	18.00	8.00
402025	8.00	14.00	7.00
403020	8.00	20.00	10.00
403025	10.00	22.00	12.00
481025	5.00	13.00	15.00
482020	8.00	15.00	13.00
482025	8.00	17.00	14.00
483020	10.00	23.00	16.00
483020	10.00	23.00	16.00
483025	14.00	25.00	16.00
561025	6.00	16.00	16.00
562020	10.00	20.00	14.00
563020	12.00	30.00	18.00
563025	16.00	35.00	19.00
643020	16.00	32.00	24.00
643025	18.00	38.00	25.00
723020	18.00	36.00	26.00
723025	25.00	42.00	27.00
963020	25.00	56.00	32.00
963025	30.00	60.00	38.00
1203020	35.00	66.00	40.00
1203025	40.00	70.00	50.00
1204025	55.00	72.00	60.00
966025	50.00	90.00	50.00

1.型号说明：比喻161025(16表示总股数1表示每一股的总根数025=0.25MM表示一根线的直径） (1)Model Description: metaphor 161,025 (16 shows total number of shares, each share represents a total root number, 025 = 0.25MM represents a wire diameter)

2.适用最大OD说明：最大OD可以根据编织网的稀密度改变编织越密编织网扩充的最大尺寸就越小 (2) applies maximum OD Description: Max OD can dilute braid density changes, the more dense weave, braid the maximum size of the smaller expansion
